Baraldi | Diamond Flexi


Model No: 01DIM02EBLF83

  • 4 Zones of 1,600kW
  • 9 Levels + Booster
  • 2 Dual Zone (Bridge Function)
  • Timer and Automatic Off
  • Residual Heat Warning
  • Pot Detection
  • Temperature Safety Sensor
  • Child Safety Switch
  • 3 Automatic Set of Cooking – Heat 40°, Slow Cooking 70°, Boiling 98°

Warranty: 2 Years Parts and Labour

Inquire Us

Induction hob and hood at the highest level. In addition to being highly effective, this hob has a series of advanced functions such as low-temperature cooking or the possibility of keeping food warm. The hood is equipped with a compact motor and can be connected to a smoke evacuation pipe outside. external or used with a long-lasting anti-odour filter module with filtered air returning to the kitchen. The Air-0 purifying module is also available. With 2 double pistons the glass opens and remains in the desired position and closes descending smoothly without the risk of falling.

Ease of cleaning is guaranteed.

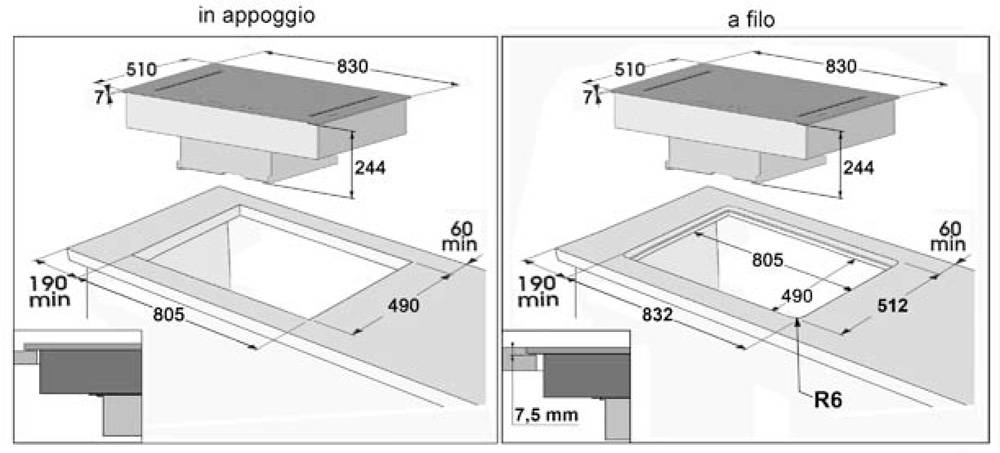

Measure81 X 51cm
MaterialBlack ceramic glass, black peel structure
ControlsBacklit hob and touch hood controls with beep sound
Functions9 levels + booster, Dual zone, Timer, Auto off., Residual heat ind., Sensors safety for pot and temperature, child safety switch, assisted cooking with temperature sensor
Hood Function6 speeds with Intensive, Timer, Automatic shut-off
SuctionOn both sides with double
Slots Air Outlet220x90 mm with fittings
VersionSuction or filtering with washable filter module
Grease FilterIn washable multilayer aluminum
Max ing. in height25cm
Consumption ClassA
Motor EfficiencyA
Lights Efficiency A
Filter Efficiency C-A*
Motor Capacity up to 1,300m3/h
Annual Consumption55kW/yearly
Noise Level in 3rd Speed65dB

Grease Aluminium Filter – 02FP230259
2 Vertical Rectangular Curves – 02TP823/D
1 Rectangular Pipe of 1,2 Meters – 01TP820/D
1 Orizontal Rectangular Curve – 01TP824/D
1 Rectangular-Round Reduction – 02TP822/D

Filter Kit with AirO Plasma – 02KITFILDIARIO – €354
Kit of Charcoal Washable Filters – 1KITFILDIAB – €159
External Outlet Plastic Grid – 02TP841/D – €25
Internal Stainless Steel Filtering Grid – 02GRIFILDIA – €36
Junction to Connect the Pipes – 02TP827/D – €16

Data Sheet
Instruction Book
Product Fiche
