Baraldi | Diamond Bridge

Original price was: €2,742.00.Current price is: €2,243.00.

Model No: 01DIM01EBL83

  • 4 Zones – 3 of 1600W & 1 of 2000W
  • 9 Levels + Booster
  • Dual Zone (Bridge Function)
  • Timer and Automatic Off
  • Residual Heat Warning
  • Pot Detection
  • Temperature Safety Sensor
  • Child Safety Switch
  • Adjustable Power Limit to 2,8kW-3,5kW-6kW-6,8kW

Warranty: 2 Years Parts and Labour

Inquire Us

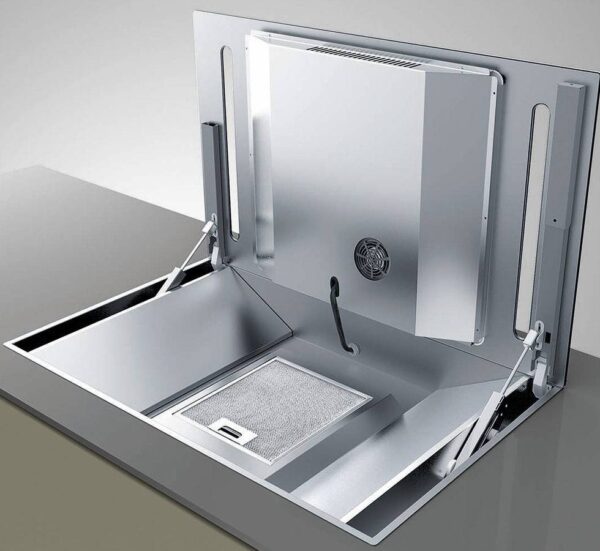

Induction hob and hood at the highest level. This plan as well as great effectiveness has a number of advanced features such as low-temperature baking or the possibility of maintaining the foods in hot The hood is equipped with a compact motor and can be connected to a pipe for the evacuation of fumes to ‘ external or used with an anti-odor filters long-lasting form with the air filter falls in the kitchen. Also available from Air-purifying 0. With 2 double pistons, glass opens and remains in the desired position, and closes down smoothly without the risk of falling.

The ease of cleaning is guaranteed.

Measures83 X 51cm
MaterialBlack Ceramic Glass, 18/8 Stainless Steel Structure (Aisi 304)
ControlsBacklit touch-screen controls and hood with beep sound
Functions9 levels + booster, Dual zone, Timer, Auto off., Residual heat ind., Safety sensors for pot and temperature, child safety switch, assisted cooking with temperature sensor
Hood Functions6 speeds with Intensive, Timer, Automatic shut-off
AspirationOn both sides with double slot

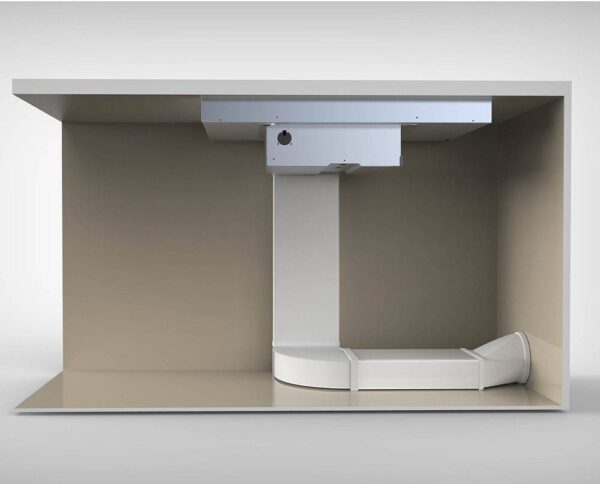

Air Outlet220x90 mm with fittings
VersionSuction or filtering with washable
Filter Module, Grease FilterIn washable multilayer aluminum
Max in Height25cm
Consumption ClassA
Motor EfficiencyA
Lights Efficiency A
Filters efficiencyA
Motor Capacity1,300m3/h
Annuall Consumption55Kw/Year
Noise Level in 3rd Speed65dB

Grease Aluminium Filter – 02FP230259
2 Vertical Rectangular Curves – 02TP823/D
1 Rectangular Pipe of 1,2 Meters – 01TP820/D
1 Orizontal Rectangular Curve – 01TP824/D
1 Rectangular-Round Reduction – 02TP822/D

Filter Kit with AirO Plasma – 02KITFILDIARIO – €354
Kit of Charcoal Washable Filters – 02KITFILDIAB – €159
External Outlet Plastic Grid – 02TP841/D – €25
Internal Stainless Steel Filtering Grid – 02GRIFILDIA – €36
Junction to Connect the Pipes – 02TP827/D – €16

Data Sheet
